KIT HSK A63 HYDRO32X125
The kits contains a hydraulic chuck with HSK tapered shank and a set of collets in various bore sizes. Most recommended for chatter dampening especially when machining high temperature alloys like titanium.
Price: Log in For Price
| Connection Size (CSI) | SC 32 S | Measurement Type | Metric |

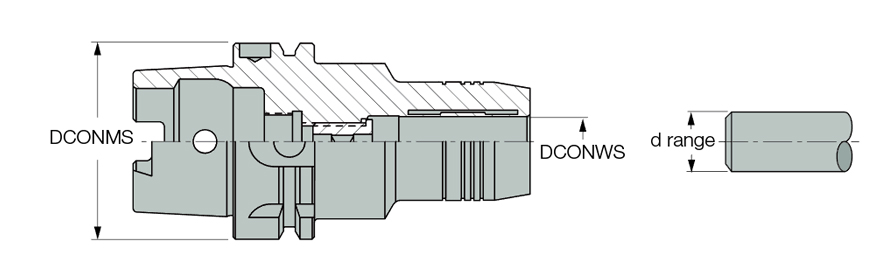

| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Tool Type | Holder Kits |
| Diameter Range | 6,8,10,12,16,20,25 mm | Body Material | Steel |
| Application | | Hydraulic Chucks | Tooling Kits & Sets | | Unit | M |
Product Features
| Family Description | The kits contains a hydraulic chuck with HSK tapered shank and a set of collets in various bore sizes. Most recommended for chatter dampening especially when machining high temperature alloys like titanium. | FamilyName | KIT HSK A-HYDRO |

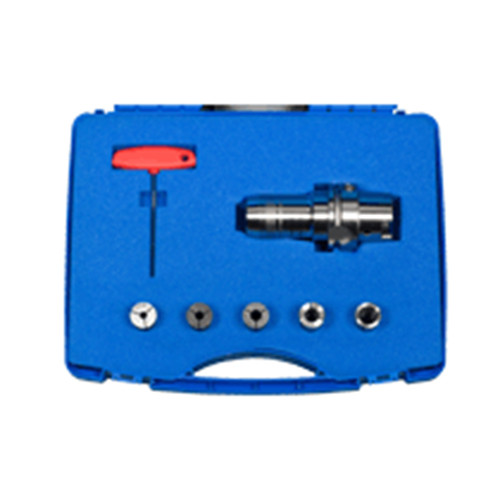

| Remarks | Each kit contains one HYDROFIT chuck, a set of SC...HYDRO sealed reducers and a clamping wrench. A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
4.9250
Name
Tool Holder Kits
FamilyName
KIT HSK A-HYDRO
BrandName
Iscar
