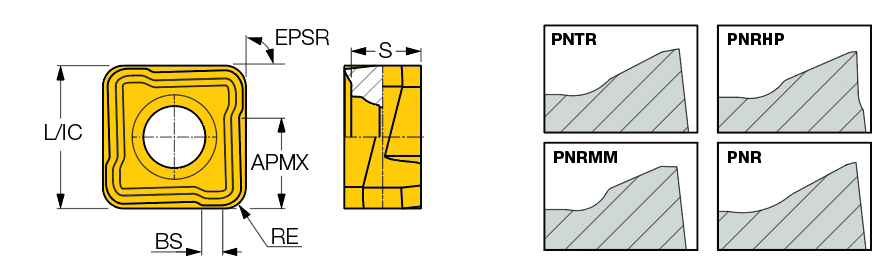

| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | IC882 |
| Application | | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Insert Length (INSL) | 5.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 5 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Inscribed Circle Diameter (IC) | 8.2 mm | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 4 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1.6 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 88.4 Degrees | Unit | M |
| Coating | AlTiN+TiAlSiN+TiSiN |
Product Features

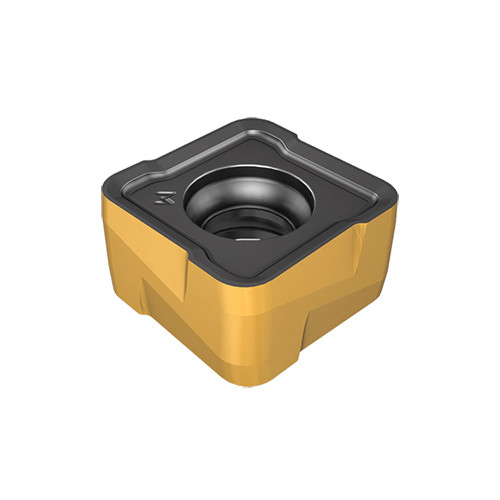

| Family Description | Double-sided square inserts with 8 cutting edges. | FamilyName | S890 SZMU-0804PN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0042
Name
Milling Indexable Inserts
FamilyName
S890 SZMU-0804PN
BrandName
Iscar
