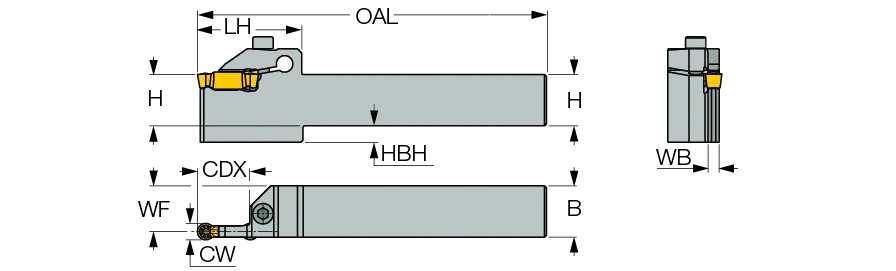

| Cutting Depth Maximum (CDX) | 1.004″ | Application | | Ext. Profiling | Ext. Turning Aluminum Wheels | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 0.213″ | Measurement Type | Inch |
| Functional Width (WF) | 0.89″ | Head Bottom Offset Height (HBH) | 0.3″ |
| Head Length (LH) | 2.03″ | Unit | I |
| Overall Length (OAL) | 6.7″ |
Product Features

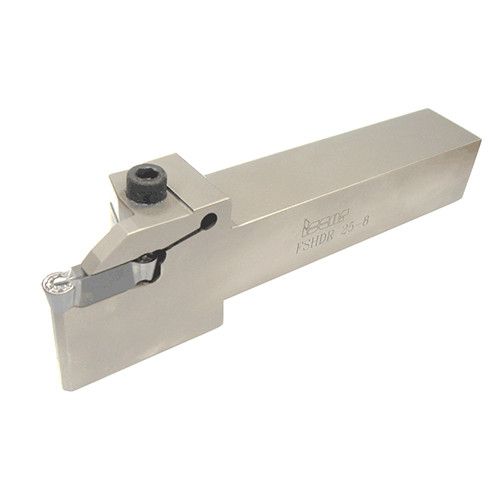

| Family Description | Tools with a very strong insert grip, for interrupted cuts and back turning aluminum wheels. | FamilyName | FSHDR |

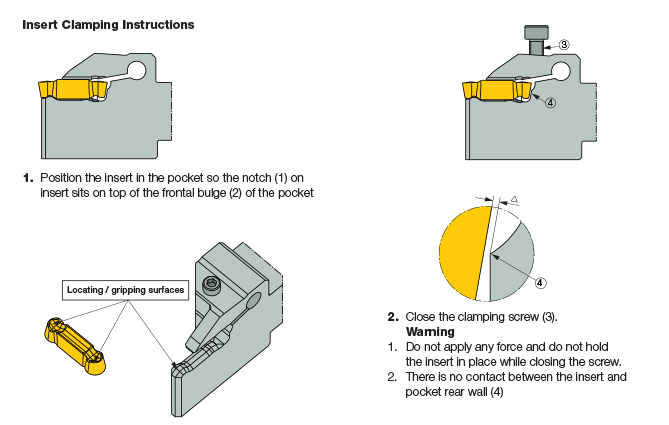

| Remarks | Clamping torque for FSHDR..-6: 66 lbfxin, for FSHDR..-8: 88 lbfxin | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9224
Name
Groove/Turn Indexable Holders
FamilyName
FSHDR
BrandName
Iscar
