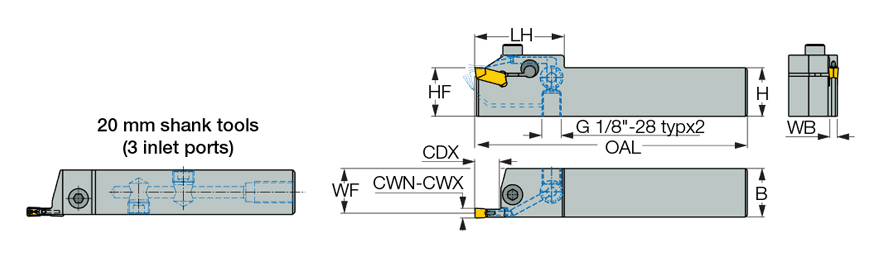

| Cutting Width Minimum (CWN) | 7 mm | Head Length (LH) | 50 mm |
| Cutting Width Maximum (CWX) | 10 mm | Overall Length (OAL) | 150 mm |
| Cutting Depth Maximum (CDX) | 16.5 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Body Width (WB) | 6.5 mm | Measurement Type | Metric |
| Functional Width (WF) | 21.8 mm | Unit | M |
Product Features
| Family Description | Grooving and turning CUT-GRIP tools with channels for high-pressure coolant. | FamilyName | GHDR/L-JHP (short pocket) |

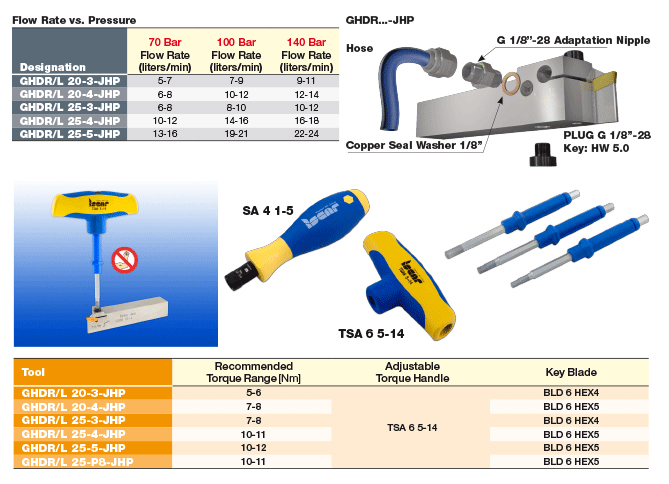

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7450
Name

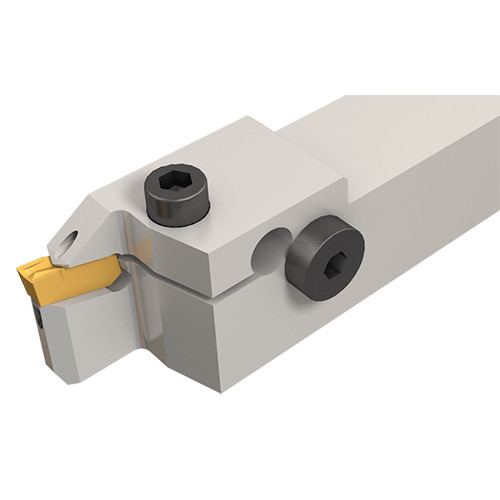

Groove/Turn Indexable Holders
FamilyName
GHDR/L-JHP (short pocket)
BrandName
Iscar
