| Cutting Width (CW) | 2 mm | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Overall Length (OAL) | 19.9 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Insert Length (INSL) | 19.9 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Depth Maximum (CDX) | 18 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN, TiN | Cutting Width Tolerance (+/-) (CWTOL) | 0.03 mm |
| Grade | IC1010 | Unit | M |
| Cutting Direction (HAND) | Neutral |
Product Features

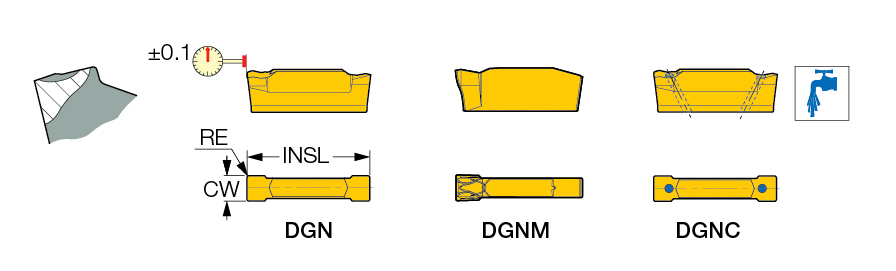

| Family Description | Used for parting bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. DGNC - with coolant holes, DGNM - single ended for very deep applications. | FamilyName | DGN/DGNC/DGNM-C |
| Remarks | The feed values for grade IC20 should be decreased by 50%. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0040
Name
Parting Off Indexable Inserts
FamilyName
DGN/DGNC/DGNM-C
BrandName
Iscar
Related Documentation

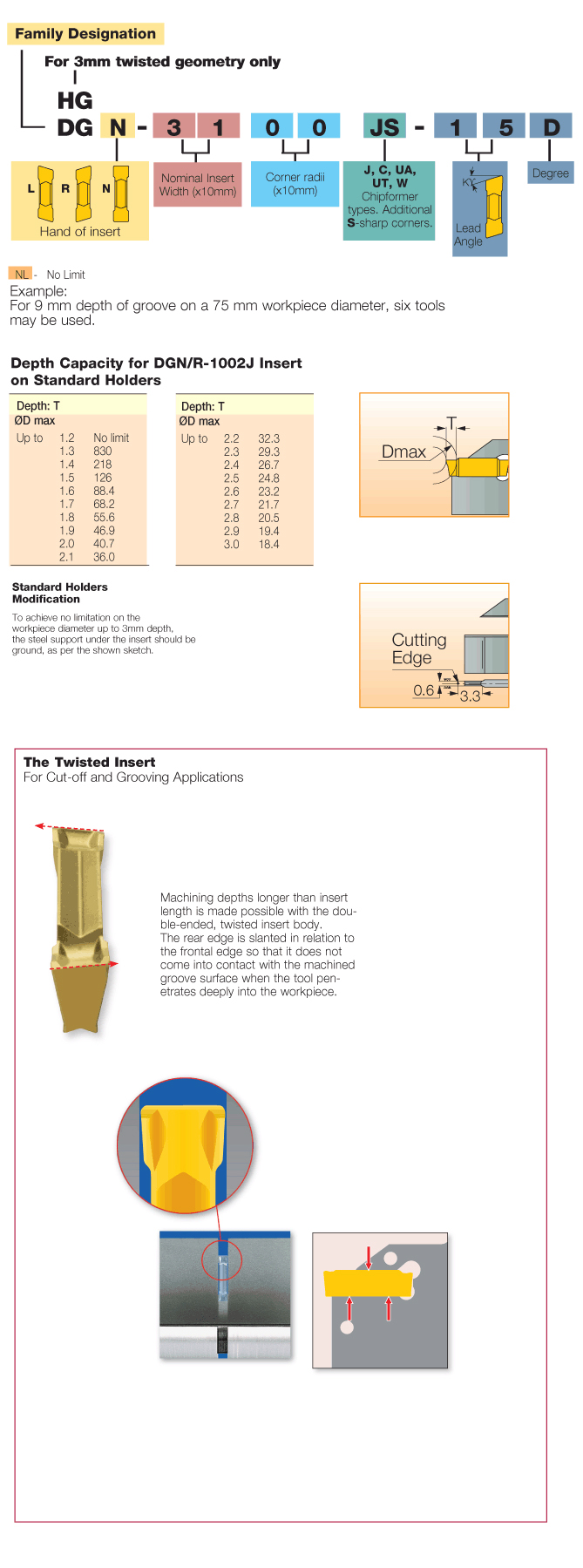

Tolerances: Insert||||||||||||W (in mm) DGN 2.0-3.0|||||||+/-0.03 DGN 4.0-6.0|||||||+/-0.04 Tolerances: Insert||||||||||||W (in Inch) DGN .079-.118|||||+/-.00118 DGN .122-.250|||||+/-.00157
