| Thread Standard | THFT | | Cutting Edge Material | Carbide |

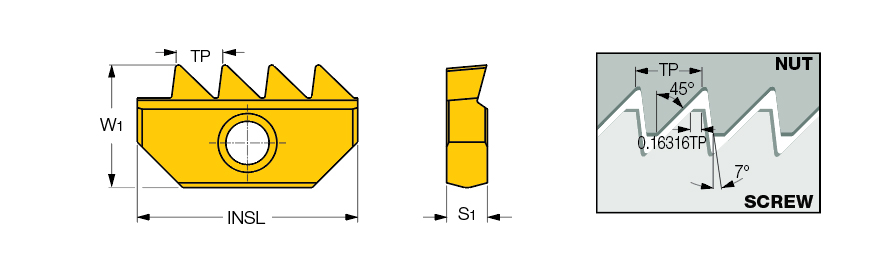

| Thread Pitch (TP) | 3.175 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 8 | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Insert Width (W1) | 16.7 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 5.6 mm | Thread Form Type (THFT) | ABUT |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | External & internal American Buttress (ANSI B1.9-1973 Class 2) thread Milling Inserts, for high force transmission in one direction. | COO | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ANSI/ASME B1.9 Class 2B External tolerance: ANSI/ASME B1.9 Class 2A |
Shipping Info
Weight per item
0.0400
