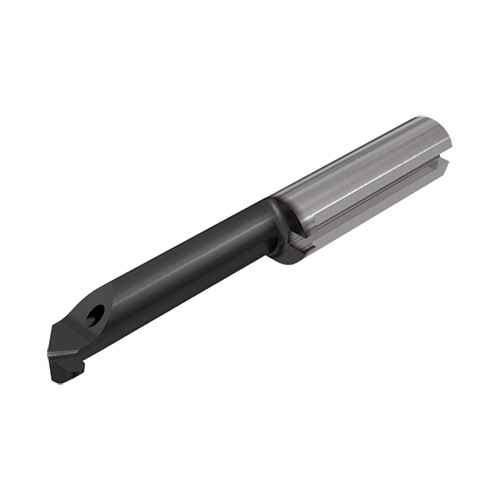

PICJ RP10D70-30 IC908
Inserts featuring full radius, with inner coolant channel for internal boring and profiling from 4.0 mm bore diameter
Price: Log in For Price

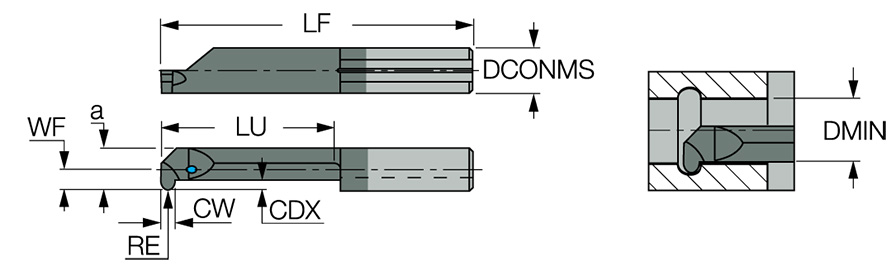

| Connection Diameter Machine Side (DCONMS) | 7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.5 mm | Application | | Int. Profiling | |
| Cutting Width (CW) | 1 mm | Tool Type | Solid, Turning & Grooving |
| Cutting Depth Maximum (CDX) | 2.5 mm | Minimum Bore Diameter (DMIN) | 6.8 mm |
| Overall Length (OAL) | 45 mm | Front End Width (a) | 6.3 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Inserts featuring full radius, with inner coolant channel for internal boring and profiling from 4.0 mm bore diameter | FamilyName | PICJ R/LP |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0170
Name
Solid and Brazed Groove/Turn & Part Off
FamilyName
PICJ R/LP
BrandName
Iscar
