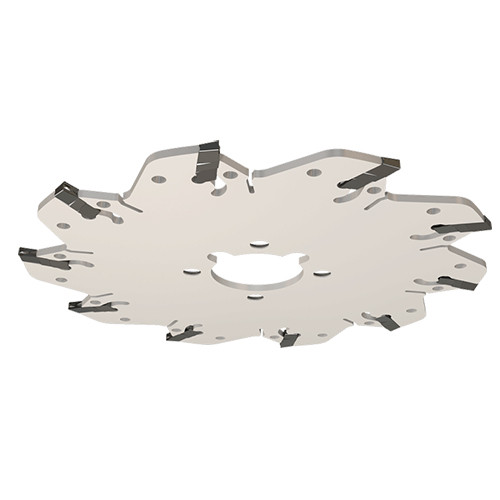

GM D200-3DG-40K
Slitting cutters carrying self-clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum.
Price: Log in For Price
| Cutting Diameter (DC) | 200 mm | Application | | Side Slotting | Slitting | |
| Cutting Item Count (CICT) | 14 | Rotational Speed Maximum (RPMX) | 400 Rev/min |
| Peripheral Effective Cutting Edge Count (ZEFP) | 14 | Tool Type | Slitting cutters |
| Cutting Depth Maximum (CDX) | 59 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 2.4 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.35 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 2.7 mm | Unit | M |
| Master Insert Identification (MIID) | GIP 3.00E-0.40 |
Product Features
| Family Description | Slitting cutters carrying self-clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum. | FamilyName | GM-DG |

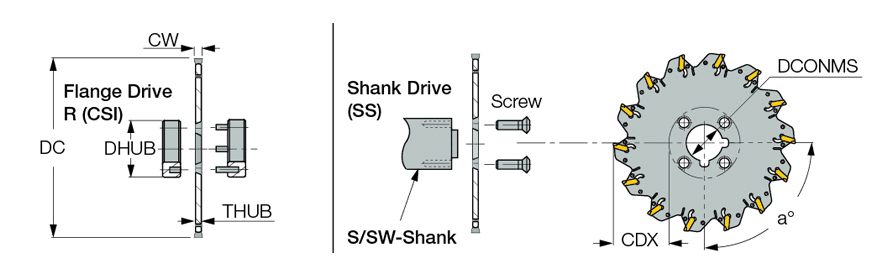

| Remarks | DHUB refers to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.8150
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
GM-DG
BrandName
Iscar
