FDN D3.0-0.281-06-LN12
Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT).
Price: Log in For Price

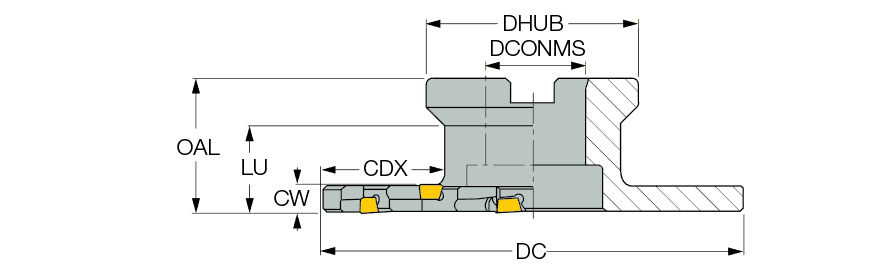

| Cutting Diameter (DC) | 3″ | Overall Length (OAL) | 1.57″ |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | LNET 124808-TN |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Bottom Shouldering | Side Slotting | Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 0.88″ | Arbor Style | A |
| Hub Diameter (DHUB) | 1.77″ | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 0.34″ | Measurement Type | Inch |
| Cutting Width Minimum (CWN) | 0.281″ | Body Material | Steel |
| Usable Length (LU) | 1.15″ | Unit | I |
| Flute Count (NOF) | 8 |
Product Features
| Family Description | Full slot cutters carrying LNET 12 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT). | FamilyName | FDN-LN12 |
| Remarks | Each tool is supplied with screws for the thinnest specified insert. Verify use of correct screw for the insert being used. Slot width depends on the selected insert width. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4727
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-LN12
BrandName
Iscar
