T490 FLN D100-08-32-R-13

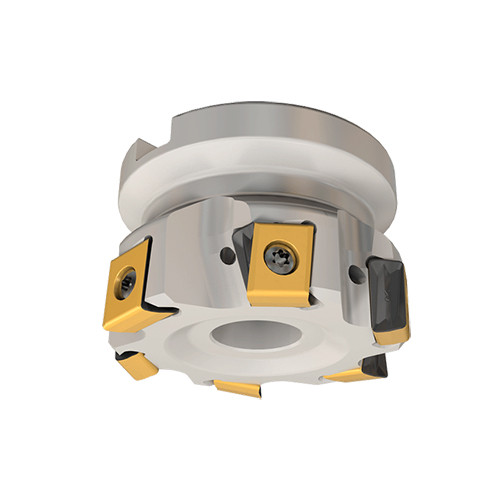

HELITANG T490 Line, 90° face mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical 13mm long cutting edges.
Price: Log in For Price

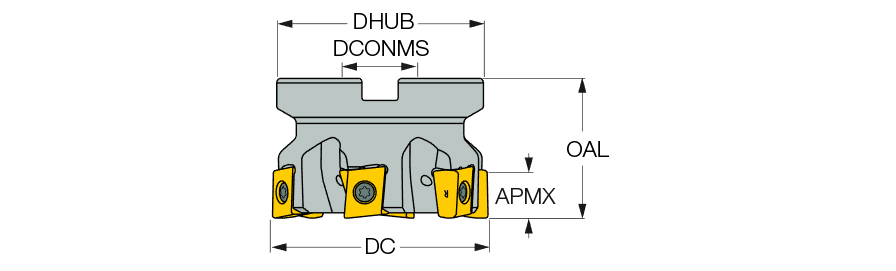

| Cutting Diameter (DC/DCX) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 100 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12.5 mm | Application | | Facing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 78 mm | Tool Type | 90° Facemills |
| Arbor Style | B | Unit | M |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical 13mm long cutting edges. | FamilyName | T490 FLN-13 |
| Remarks | When machining slots, coarse pitch cutters should be used. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.7020
Name
Indexable Face Mills
FamilyName
T490 FLN-13
BrandName
Iscar
