T490 FLN D050-03-22-16

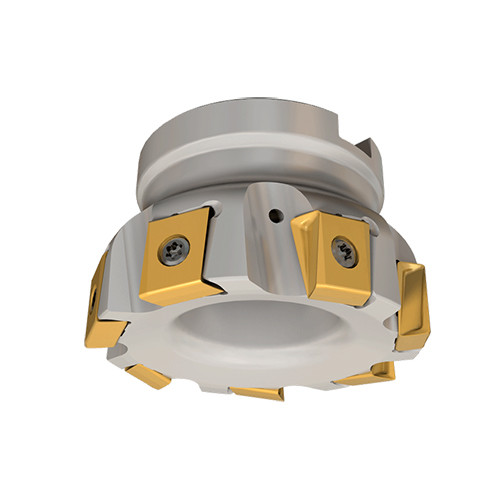

HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 helical 16mm long cutting edges.
Price: Log in For Price

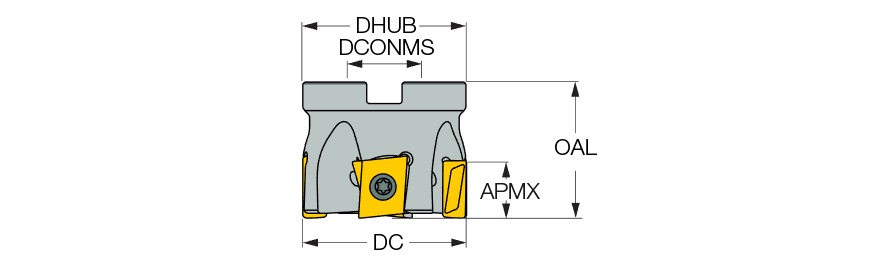

| Cutting Diameter (DC/DCX) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 90° Facemills |

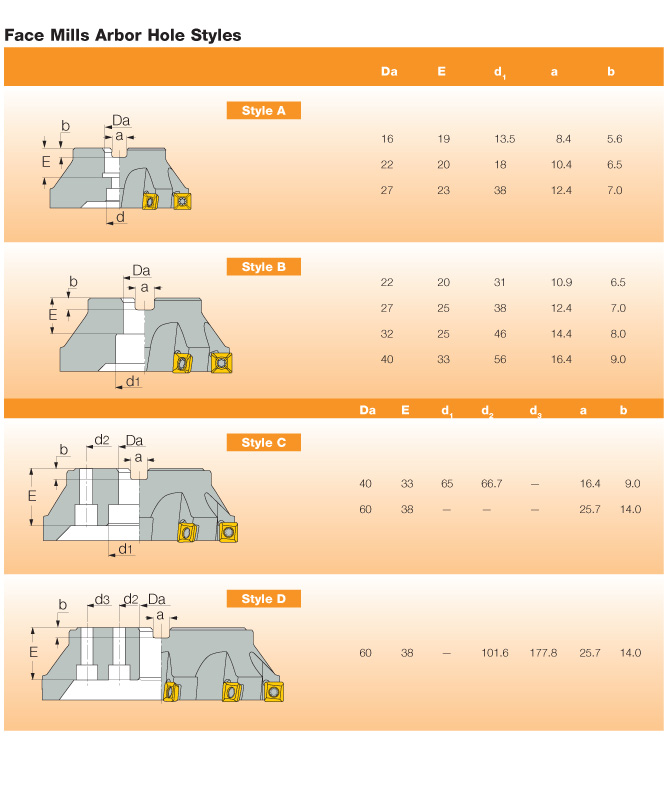

| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | T490 LNHT 160708PNR |
Product Features
| Family Description | HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 helical 16mm long cutting edges. | FamilyName | T490 FLN-16 |
| Remarks | When machining slots, regular pitch cutters should be used. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4810
Name
Indexable Face Mills
FamilyName
T490 FLN-16
BrandName
Iscar
