H690 FWN D063-07-22-R07
90° face mills carrying H690 WNMU 0705 double-sided trigonal inserts with 6 helical cutting edges.
Price: Log in For Price

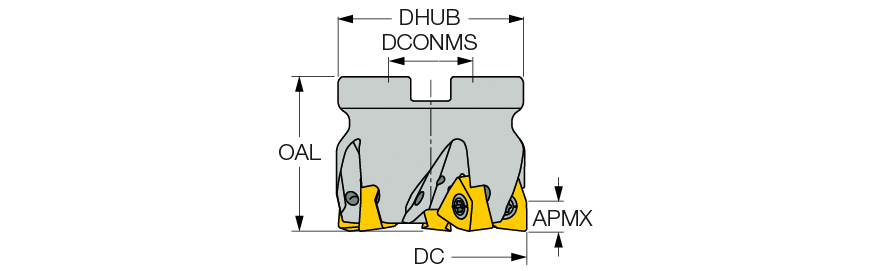

| Cutting Diameter (DC/DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | M |
| Master Insert Identification (MIID) | H690 WNMU 070512PNTR |
Product Features
| Family Description | 90° face mills carrying H690 WNMU 0705 double-sided trigonal inserts with 6 helical cutting edges. | FamilyName | H690 FWN-07 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6720
Name
Indexable Face Mills
FamilyName
H690 FWN-07
BrandName
Iscar
