S890 FSN D063-05-22-R13

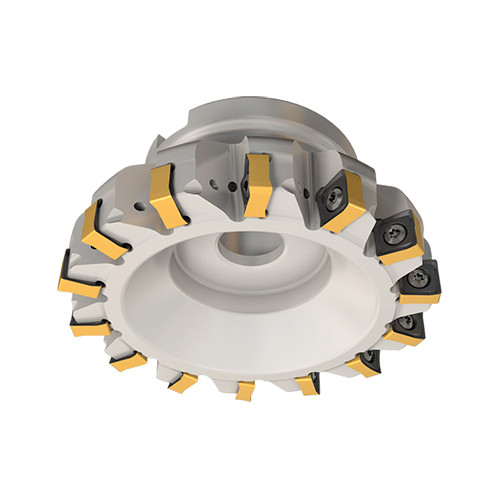

Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications.
Price: Log in For Price

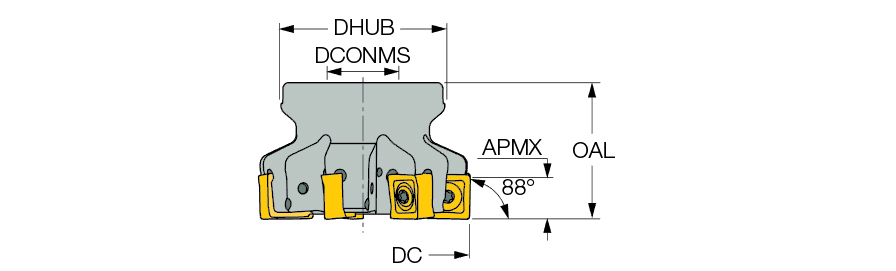

| Cutting Diameter (DC/DCX) | 59.5 mm | Master Insert Identification (MIID) | S890 SNMU 1305PNR |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 59.5 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.2 mm | Application | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 41.1 mm | Tool Cutting Edge Angle (KAPR) | 89 Degrees |
| Hub Diameter (DHUB) | 48 mm | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | M |
Product Features
| Family Description | Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications. | FamilyName | S890 FSN-13 |
| Remarks | Use only Torx Plus keys | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5580
Name
Indexable Face Mills
FamilyName
S890 FSN-13
BrandName
Iscar
