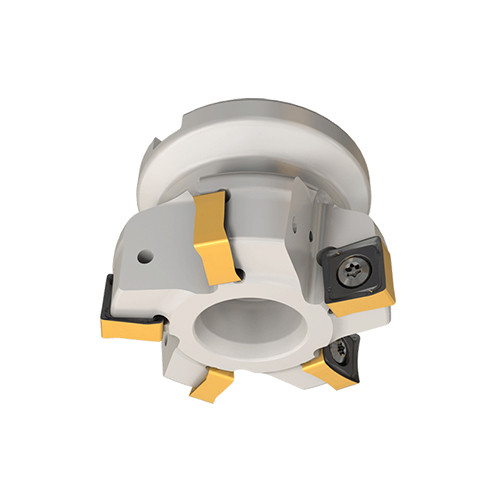

S890 FSN D2.5-07-1.00-R13
HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications.
Price: Log in For Price

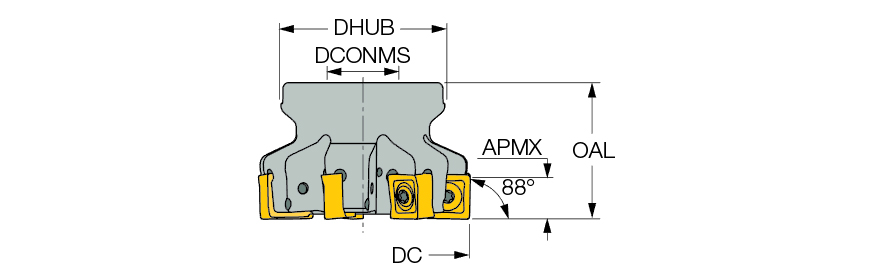

| Cutting Diameter (DC/DCX) | 2.362″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2-1/2″ | Usable Length (LU) | 1.793″ |
| Cutting Diameter Maximum (DCX) | 2.362″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ | Application | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.797″ | Tool Cutting Edge Angle (KAPR) | 89 Degrees |
| Hub Diameter (DHUB) | 2.22″ | Tool Type | 90° Facemills |
| Arbor Style | A | Unit | I |
| Master Insert Identification (MIID) | S890 SNMU 1305PNR |
Product Features
| Family Description | HELIDO, Face mills carrying inserts with 8 cutting edges. A very efficient solution for high metal removal of cast iron and steel components. The 88° lead angle minimizes burrs and edge chipping for cast iron applications. | FamilyName | S890 FSN-13 |
| Remarks | Use only Torx Plus keys | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.5873
Name
Indexable Face Mills
FamilyName
S890 FSN-13
BrandName
Iscar
