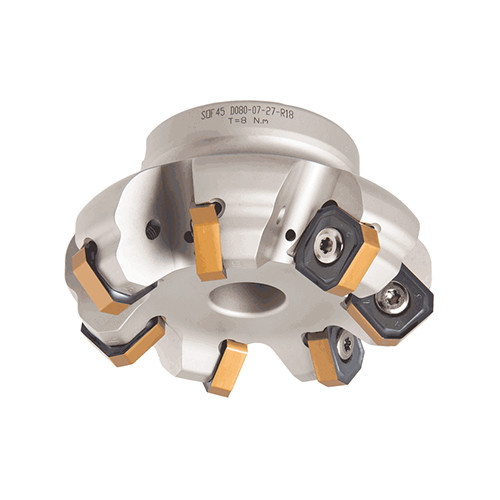

SOF45 D250-21-60-R18
45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges.
Price: Log in For Price

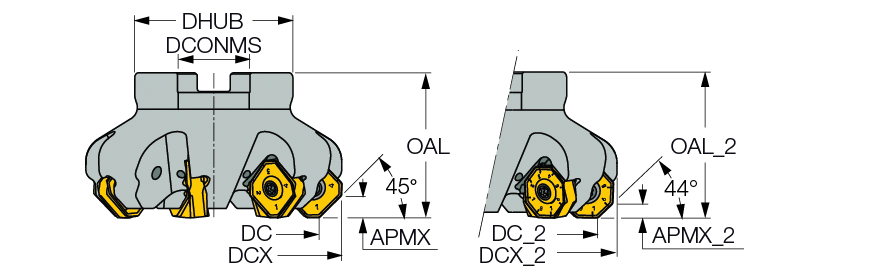

| Cutting Diameter (DC/DCX) | 267 mm | Master Insert Identification (MIID) | ONMU 0706 |
| Cutting Diameter (DC) | 250 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 267 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 21 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Overall Length (OAL) | 61.5 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 135 mm | Tool Type | 45° Facemills |
| Arbor Style | C | Unit | M |
Product Features
| Family Description | 45° face mills carrying square or octagonal double-sided inserts with 8/16 cutting edges. | FamilyName | SOF45-R18 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
11.3500
Name
Indexable Face Mills
FamilyName
SOF45-R18
BrandName
Iscar
