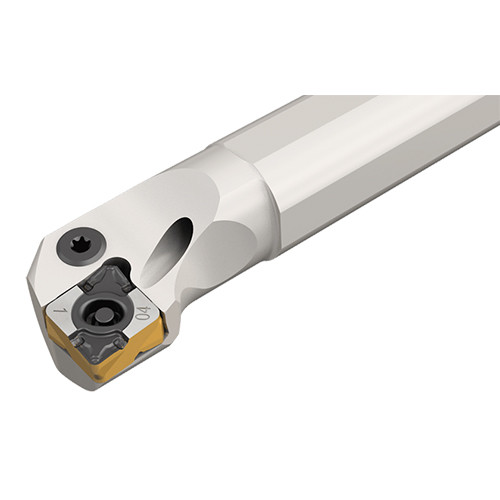

A20R PCLXL-09X
Lever lock boring bars carrying CXMG 80° rhombic inserts, for heavy internal turning applications.
Price: Log in For Price

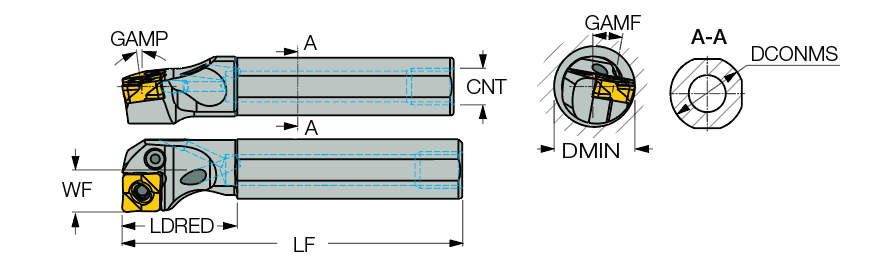

| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 200 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 30 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Shank Height (H) | 18 mm | Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 13 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMG 09.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 25 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Lever lock boring bars carrying CXMG 80° rhombic inserts, for heavy internal turning applications. | FamilyName | A-PCLXR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4130
Name
Indexable Internal Turning Tools
FamilyName
A-PCLXR/L
BrandName
Iscar
