S20R STFPR-16

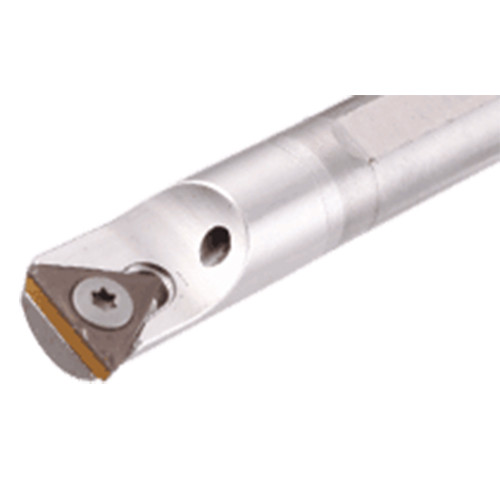

Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole; E - Carbide shank with coolant hole.
Price: Log in For Price

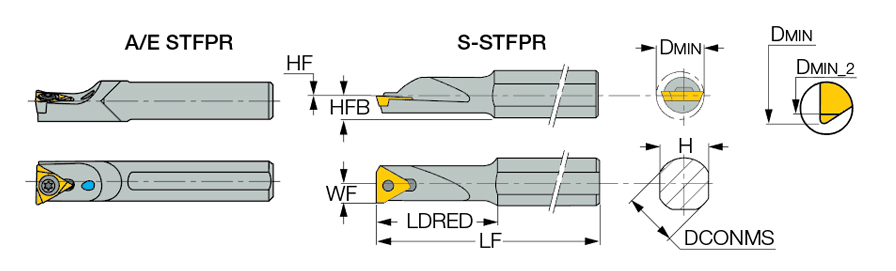

| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 200 mm | Rake Angle Axial (GAMP) | 5 Degrees |
| Reduced Body Diameter Length (LDRED) | 63 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 18 mm | Minimum Bore Diameter_2 (DMIN_2) | 21.5 mm |
| Functional Width (WF) | 10.2 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TPMT 16.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 21.5 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Screw lock boring bars carrying triangular inserts with 11° clearance. S - Steel shank; A - Steel shank with coolant hole; E - Carbide shank with coolant hole. | FamilyName | A/E/S-STFPR/L |
| Remarks | (a1) When used with insert TPG. 110204-XL (a2) When used with insert TP.. 110204-.. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4540
Name
Indexable Internal Turning Tools
FamilyName
A/E/S-STFPR/L
BrandName
Iscar
