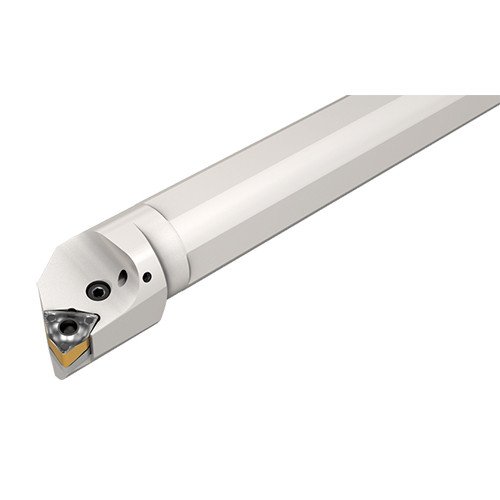

A-PWLNR 20-3G
Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications.
Price: Log in For Price

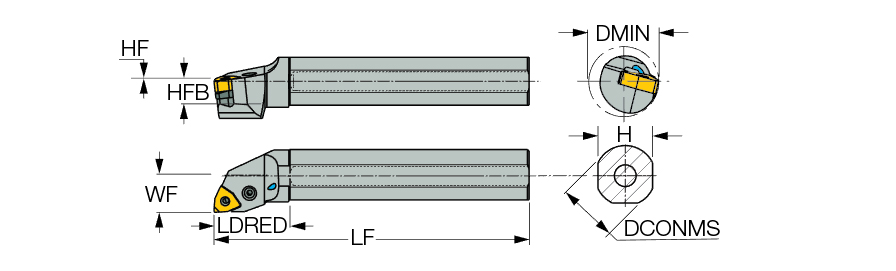

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 14″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.57″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.14″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.77″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 33. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.55″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features
| Family Description | Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications. | FamilyName | A-PWLNR/L-X/G |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
2.9035
Name
Indexable Internal Turning Tools
FamilyName
A-PWLNR/L-X/G
BrandName
Iscar
