ERW D030A040-A-5-C32-10

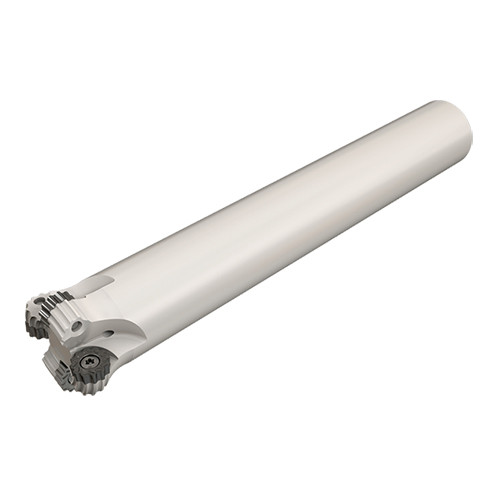

MILLSHRED-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines.

Price: Log in For Price

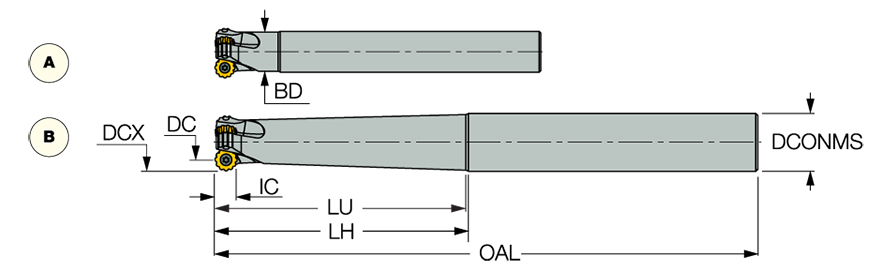

Cutting Diameter (DC/DCX) | 30 mm | Tool Type | Round corner cutters |
Cutting Diameter (DC) | 30 mm | Coolant Supply Property (CSP) | Coolant Thru |
Cutting Item Count (CICT) | 5 | Front Type | A |
Depth of Cut Maximum (APMX) | 5 mm | Cutting Direction (HAND) | Right Hand |
Overall Length (OAL) | 200 mm | Measurement Type | Metric |
Shank Type | Round | Body Material | Steel |
Ramping Angle Maximum (RMPX) | 3 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Diameter Maximum (DCX) | 40 mm |
Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
Master Insert Identification (MIID) | RCCT 1004MO |


Product Features
Family Description | MILLSHRED-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | FamilyName | ERW |
Remarks | For adaptation, click on More Info. | BrandName | Iscar |
COO | Israel |
Shipping Info
Weight per item
1.2750
Name
Indexable End Mills
FamilyName
ERW
BrandName
Iscar
