H690 E90AX D20-3-C20-10

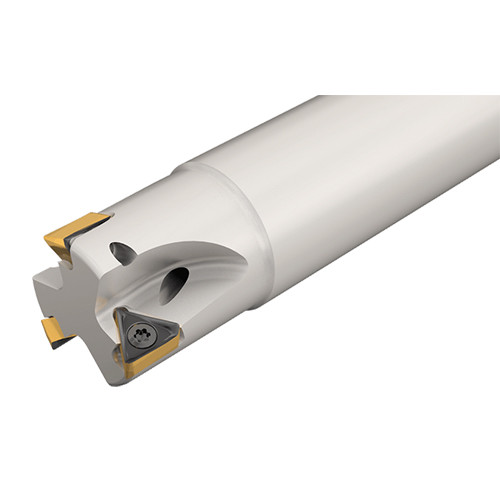

90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges.
Price: Log in For Price

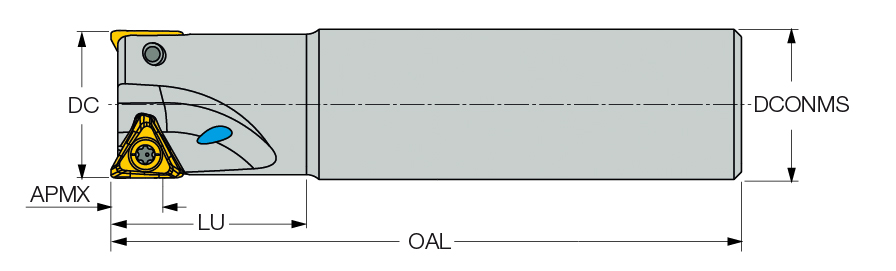

| Cutting Diameter (DC/DCX) | 20 mm | Functional Length (LF) | 110 mm |
| Cutting Diameter (DC) | 20 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.8 Degrees | Measurement Type | Metric |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | H690 TNKX 1005 | Unit | M |
| Head Length (LH) | 26 mm |
Product Features
| Family Description | 90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges. | FamilyName | H690 E90AX-10 |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3010
Name
Indexable End Mills
FamilyName
H690 E90AX-10
BrandName
Iscar
