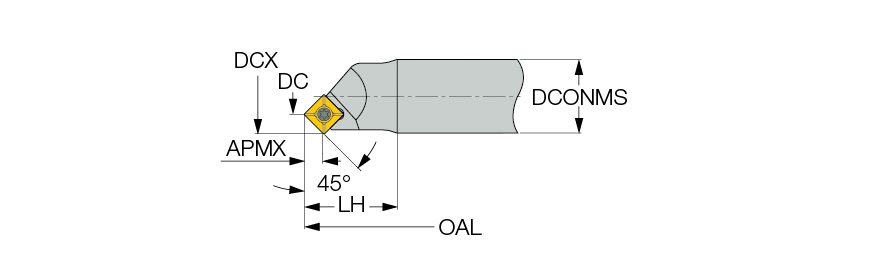

| Cutting Diameter (DC/DCX) | 8 mm | Functional Length (LF) | 56 mm |
| Cutting Diameter (DC) | 8 mm | Tool Type | Chamfering endmills |
| Cutting Item Count (CICT) | 1 | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Overall Length (OAL) | 80 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Body Material | Steel |
| Application | | Chamfering & Bottom Deburring | Countersinking | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16.1 mm |
| Master Insert Identification (MIID) | SOMT 0602 | Unit | M |
| Head Length (LH) | 23 mm |
Product Features
| Family Description | 45° chamfering endmills carrying X/Q/SOMT 06 inserts. | FamilyName | E45X |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1610
Name
Indexable End Mills
FamilyName
E45X
BrandName
Iscar
