H606 ER D1.5-04-W1.25-.50

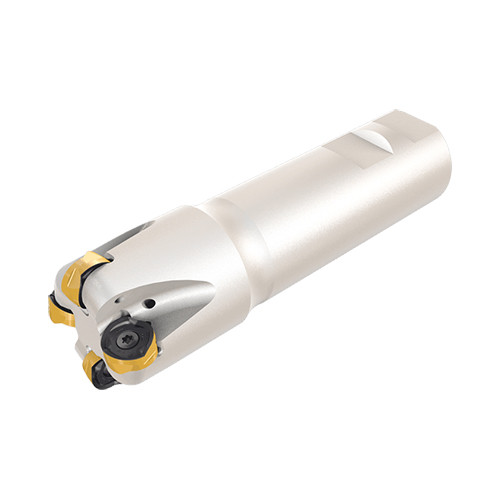

Endmills carrying double-sided inserts with six .250″ radius cutting edges.
Price: Log in For Price

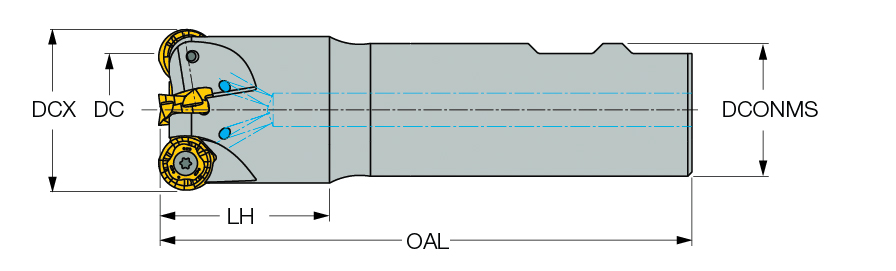

| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 3.859″ |
| Cutting Diameter (DC) | 1.028″ | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | H606 RXCU 1206-AXMP | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Head Length (LH) | 1.6″ | Unit | I |
Product Features
| Family Description | Endmills carrying double-sided inserts with six .250″ radius cutting edges. | FamilyName | H606 ER |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7681
Name
Indexable End Mills
FamilyName
H606 ER
BrandName
Iscar
