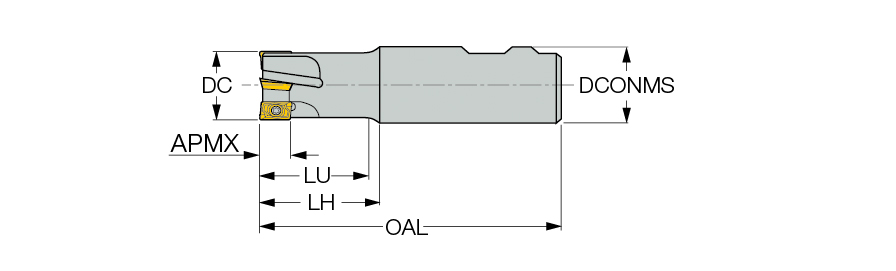

| Cutting Diameter (DC/DCX) | 12 mm | Functional Length (LF) | 80 mm |
| Cutting Diameter (DC) | 12 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 1 | Usable Length (LU) | 14 mm |
| Depth of Cut Maximum (APMX) | 9.8 mm | Flute Count (NOF) | 1 |
| Overall Length (OAL) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 32 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM90 APKT 1003 PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Head Length (LH) | 20 mm | Unit | M |
Product Features

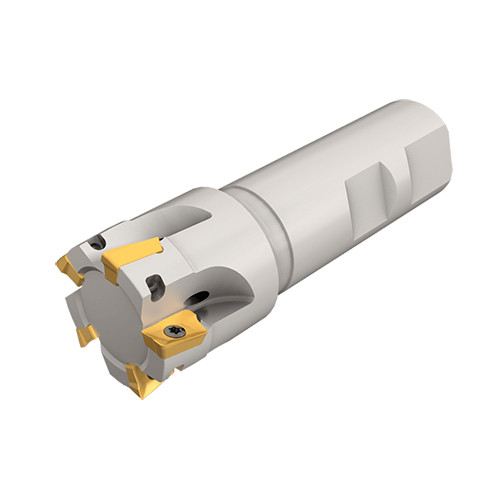

| Family Description | Endmills carrying HM90 AP.. 1003... inserts. | FamilyName | HM90 E90A-10 |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1480
Name
Indexable End Mills
FamilyName
HM90 E90A-10
BrandName
Iscar
