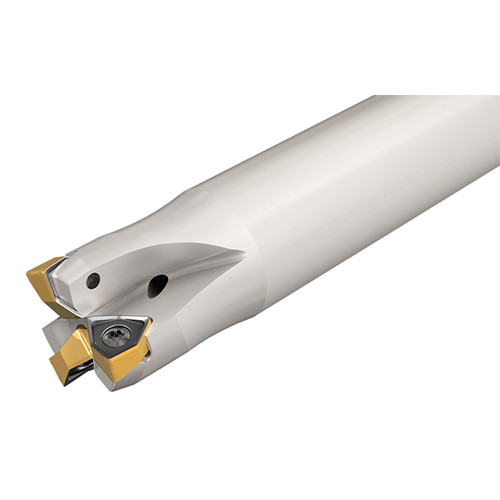

H690 EWN D1.25-6-W1.25R04
90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges.
Price: Log in For Price

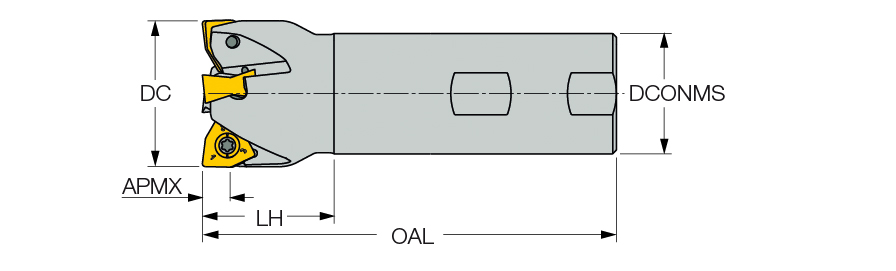

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1-1/2″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 3.109″ |
| Cutting Item Count (CICT) | 6 | Flute Count (NOF) | 6 |
| Depth of Cut Maximum (APMX) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4-1/4″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

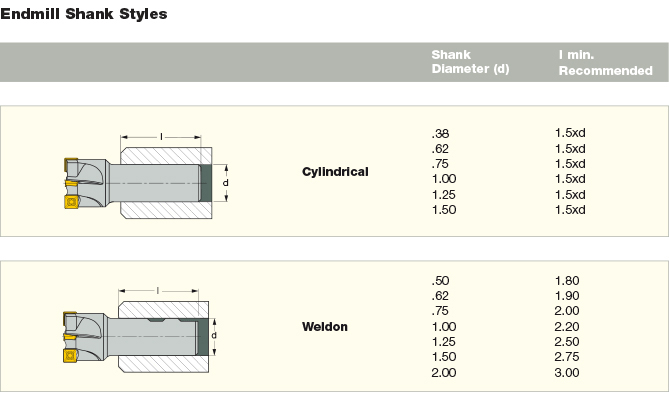

| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees | Measurement Type | Inch |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | H690 WNMU 0403-PNTR | Unit | I |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | FamilyName | H690 EWN-04 |
| Remarks | Insert clamping screw must be lubricated every indexing. Tightening torque 8 lbfxin | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.3470
Name
Indexable End Mills
FamilyName
H690 EWN-04
BrandName
Iscar
