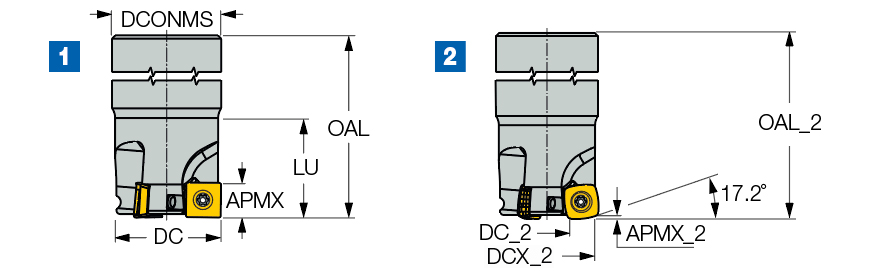

| Cutting Diameter (DC/DCX) | 1-1/4″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Diameter (DC) | 1-1/4″ | Master Insert Identification (MIID) | SPMT 100404R-HQ-M |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.38″ | Usable Length (LU) | 1-1/4″ |
| Overall Length (OAL) | 3-3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 2 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Rampdown | Shouldering | Slotting | | Unit | I |
Product Features

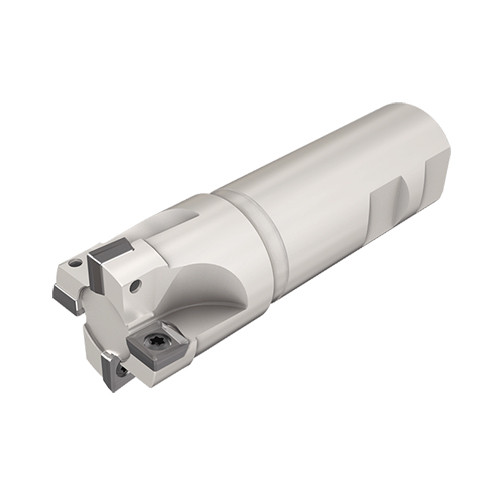

| Family Description | HELIQUAD endmills carrying S/XPMT inserts. | FamilyName | E90SP |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.9370
Name
Indexable End Mills
FamilyName
E90SP
BrandName
Iscar
