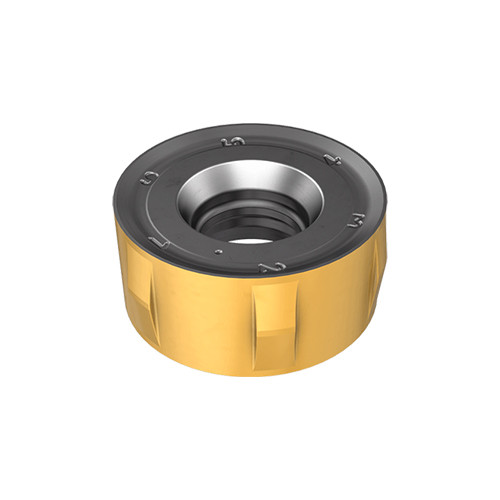

RDS RNMU1255EN-HP IC5500
Double-sided round inserts with 12 cutting edges for profile milling
Price: Log in For Price
| Applicable Material | | Steel | | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 6 mm | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 5.43 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC5500 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth | Unit | M |
Product Features
| Family Description | Double-sided round inserts with 12 cutting edges for profile milling | FamilyName | RDS RNMU/RNMW |
| Remarks | HP- for austenitic stainless steel, titanium and high temperature alloys and soft steel T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0076
Name
Milling Indexable Inserts
FamilyName
RDS RNMU/RNMW
BrandName
Iscar
