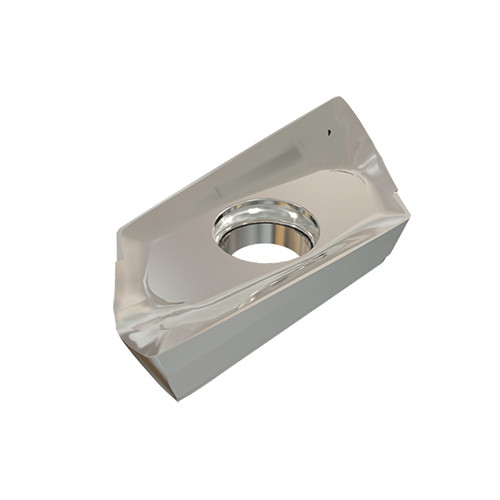

HM90 APCR 220608R-P IC08
Super positive and polished 22 mm inserts with various corner radii used for machining aluminum.
Price: Log in For Price
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |

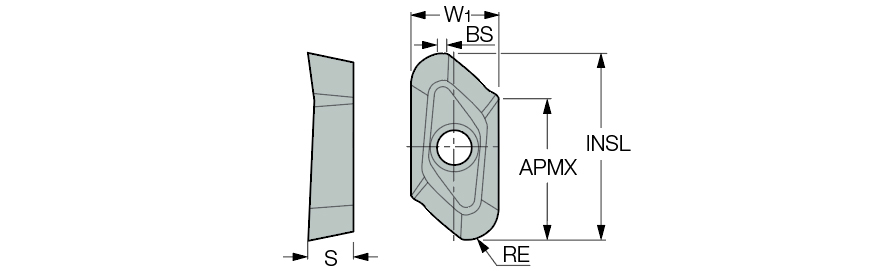

| Insert Length (INSL) | 29.7 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 22 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 13.72 mm | Cutting Edge Effective Length (LE) | 22.1 mm |
| Insert Thickness (S) | 6.9 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.2 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IC08 |
Product Features
| Family Description | Super positive and polished 22 mm inserts with various corner radii used for machining aluminum. | FamilyName | HM90 APCR 2206..R-P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0191
Name
Milling Indexable Inserts
FamilyName
HM90 APCR 2206..R-P
BrandName
Iscar
