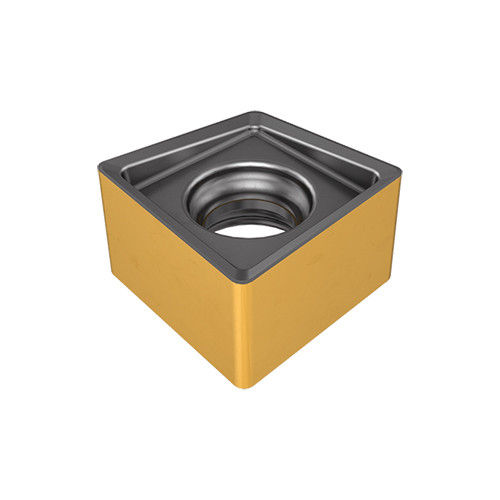

XNMU 060304-PNTN IC830
Square inserts with 4 right- and 4 left-hand cutting edges.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Cutting Direction (HAND) | Neutral |

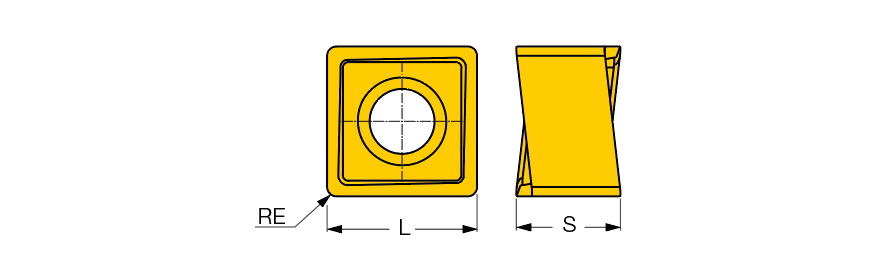

| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Thickness (S) | 4.4 mm | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | XNMU 06 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0026
Name
Milling Indexable Inserts
FamilyName
XNMU 06
BrandName
Iscar
