FFQ8 SZMU 120520T IC810

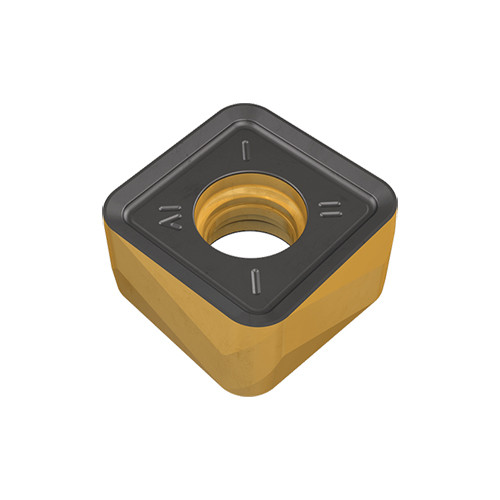

Double-sided square inserts with 8 cutting edges for high feed milling
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | | Grade | IC810 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 1.5 mm/tooth |

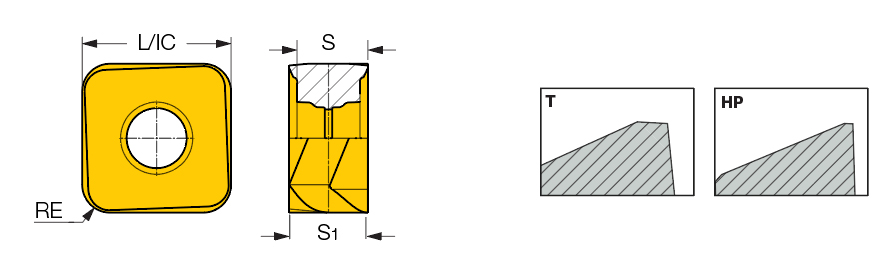

| Insert Length (INSL) | 12 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 10 mm | Minimum Feed per Tooth (fz(min)) | 0.4 mm/tooth |
| Inscribed Circle Diameter (IC) | 12 mm | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 5.85 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0 mm | Body Material | Carbide |
| Coating | AlTiCrN+TiN | Unit | M |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges for high feed milling | FamilyName | FFQ8 SZMU |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel HP - for austenitic stainless steel and high temperature alloys For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0112
Name
Milling Indexable Inserts
FamilyName
FFQ8 SZMU
BrandName
Iscar
