FFQ4 SOMT 170625TFW IC808

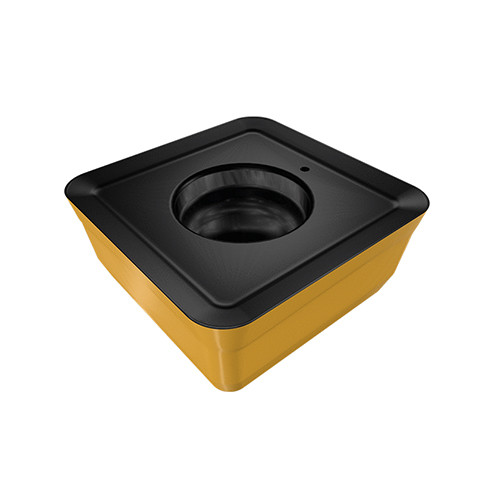

Single-sided square inserts with 4 cutting edges for fast feed milling
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Neutral |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 17.5 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 2.5 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Thickness (S) | 6 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 1.2 mm/tooth |
Product Features
| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling | FamilyName | FFQ4 SOMT/W 1706 |
| Remarks | For side plunging, the initial cutting feed is 0.1 mm/t T type for steel, ferritic and martensitic stainless steel and cast iron RM-.. type for interrupted cut and machining near straight shoulder walls HP type for austenitic stainless steel and high temperature alloys TFW type for unstable cutting conditions SOMW- flat insert for hard material (up to 60 HRC) and uneven surface | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0010
Name
Milling Indexable Inserts
FamilyName
FFQ4 SOMT/W 1706
BrandName
Iscar
