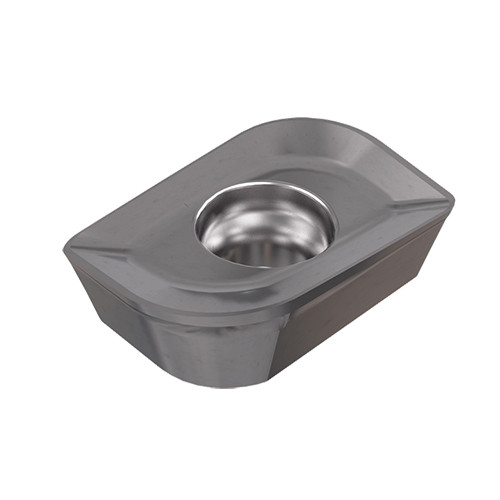

APKT 100332TR-RM IC28
HELIMILL inserts with different corner radii and a reinforced cutting edge for interrupted cut and heavy machining.
Price: Log in For Price
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Application | | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

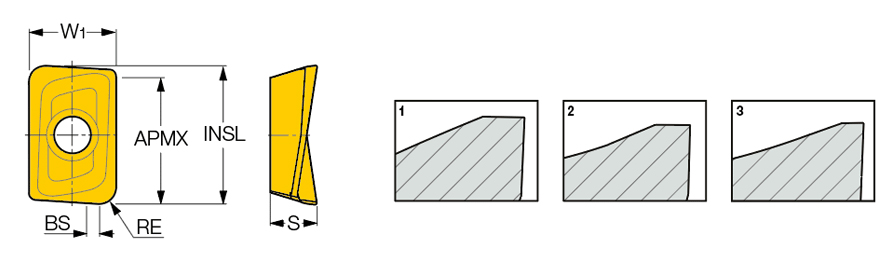

| Insert Length (INSL) | 10.7 mm | Figure | 3 |
| Corner Radius (RE) | 3.2 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 9.2 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 6.7 mm | Cutting Edge Effective Length (LE) | 9.65 mm |
| Insert Thickness (S) | 3.47 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
Product Features
| Family Description | HELIMILL inserts with different corner radii and a reinforced cutting edge for interrupted cut and heavy machining. | FamilyName | APKT 1003..TR-RM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0031
Name
Milling Indexable Inserts
FamilyName
APKT 1003..TR-RM
BrandName
Iscar
