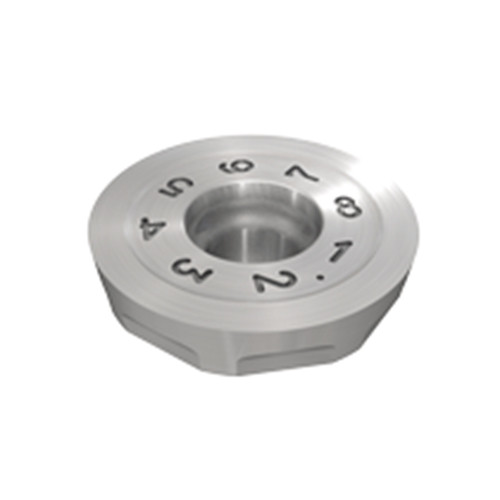

RCCW 1605-T IC328
Round milling inserts with a mounting bottom cylinder and 8 indexing cavities on the insert flank. Used for roughing and finishing applications in the die & mold industry on alloyed and stainless steel.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Facing | Profiling | Rampdown | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Insert Thickness (S) | 3.2 mm | Number of Cutting Edges | 8 |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC328 | Body Material | Carbide |
| Insert Body Diameter (INSBD) | 10 mm | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
Product Features
| Family Description | Round milling inserts with a mounting bottom cylinder and 8 indexing cavities on the insert flank. Used for roughing and finishing applications in the die & mold industry on alloyed and stainless steel. | FamilyName | RCCW/RCMW-H-T |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0100
Name
Milling Indexable Inserts
FamilyName
RCCW/RCMW-H-T
BrandName
Iscar
