| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Cutting Edge Material | Carbide |

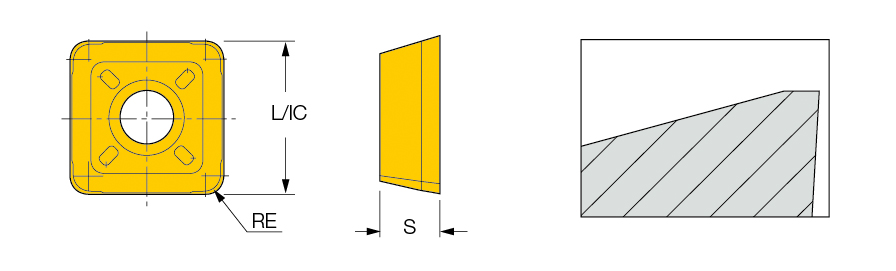

| Insert Length (INSL) | 10.35 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.7 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.12 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
Product Features

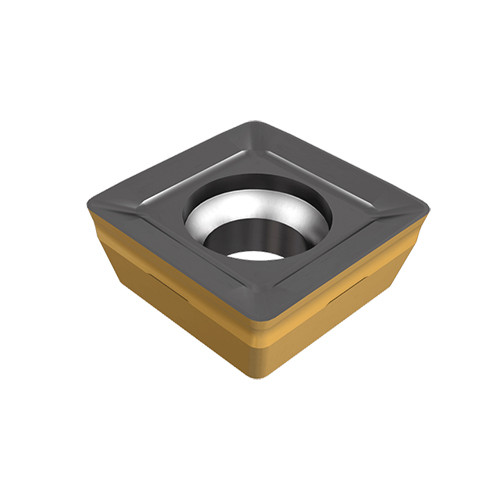

| Family Description | Neutral insert with reinforced land for slotting | FamilyName | QPMT 100408PDTN |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0050
Name
Milling Indexable Inserts
FamilyName
QPMT 100408PDTN
BrandName
Iscar
