HCR D160-QF IC908

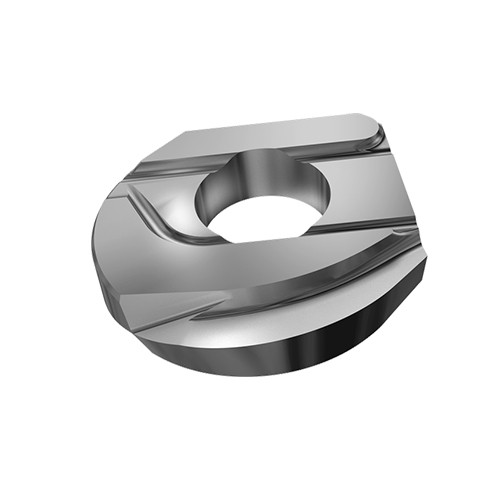

Ball nose inserts with 2 straight tangent cutting edges (fully effective) for cavity profiling and shouldering. Due to its high accuracy (0.01 mm), can be used for roughing and finishing.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Helical Interpolation | Profiling | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 11.3 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3.37 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | Ball nose inserts with 2 straight tangent cutting edges (fully effective) for cavity profiling and shouldering. Due to its high accuracy (0.01 mm), can be used for roughing and finishing. | FamilyName | HCR |
| Remarks | QF - For general use applications QP - Positive chipformer for low cutting forces. Recommended for machining aluminum, titanium and other exotic materials. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0083
Name
Milling Indexable Inserts
FamilyName
HCR
BrandName
Iscar
