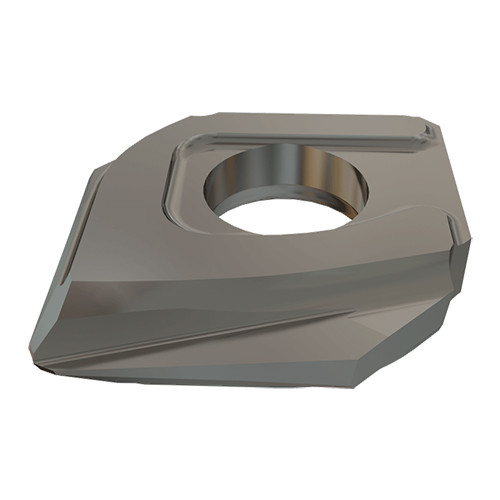

HCD D160-090-QF IC908
2 cutting edges (fully effective) 90° V-shaped insert for chamfering countersinking and spot drilling. Part of the BALLPLUS multifunction milling system.
Price: Log in For Price

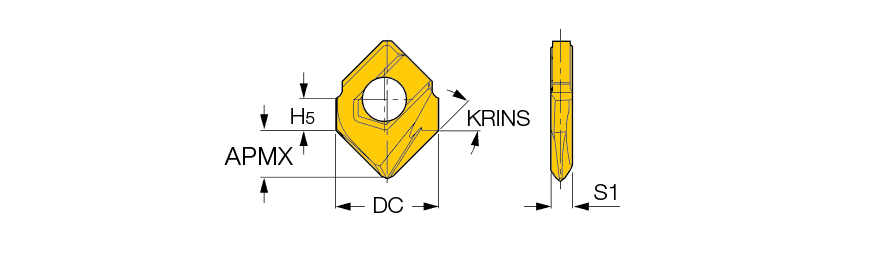

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Countersinking | Drill Mill | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 7.5 mm | Tool Type | Single sided Inserts |
| Insert Width (W1) | 16 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 3.37 mm | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 45 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | 2 cutting edges (fully effective) 90° V-shaped insert for chamfering countersinking and spot drilling. Part of the BALLPLUS multifunction milling system. | FamilyName | HCD-QF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0086
Name
Milling Indexable Inserts
FamilyName
HCD-QF
BrandName
Iscar
