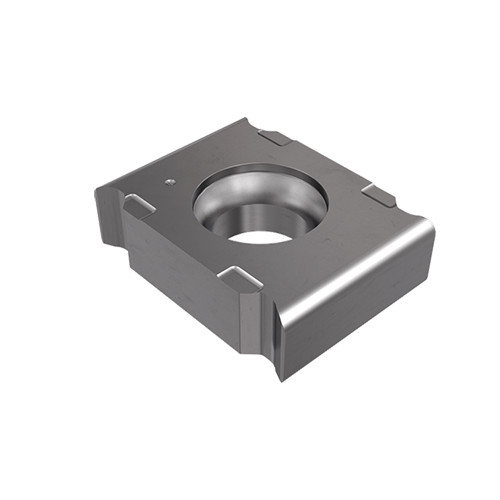

LNET 126504-TN-MM IC928
TANGSLOT Tangentially clamped inserts with 4 cutting edges for milling deep and long slots on steel. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Bottom Shouldering | Shouldering | Side Slotting | Slotting | T Slotting | | Cutting Edge Material | Carbide |

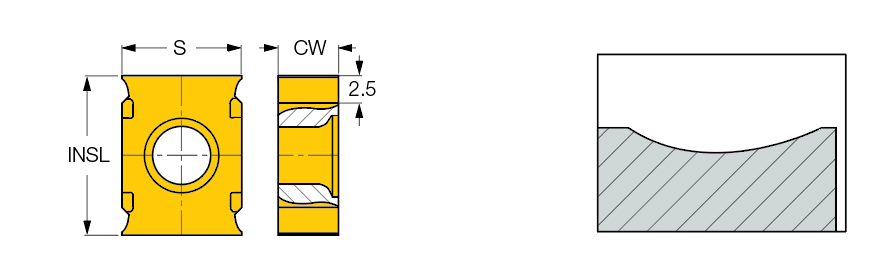

| Insert Length (INSL) | 12.7 mm | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Insert Width (W1) | 12.7 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 9.52 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC928 |
Product Features
| Family Description | TANGSLOT Tangentially clamped inserts with 4 cutting edges for milling deep and long slots on steel. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface. | FamilyName | LNET 12-TN-MM |
| Remarks | Excellent chip evacuation | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0103
Name
Milling Indexable Inserts
FamilyName
LNET 12-TN-MM
BrandName
Iscar
