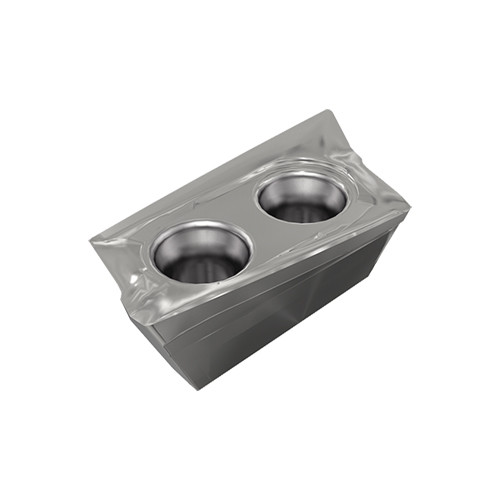

HP ADKT 190616PDTR IC908
HELIPLUS milling inserts with 19 mm cutting edge for general use.
Price: Log in For Price

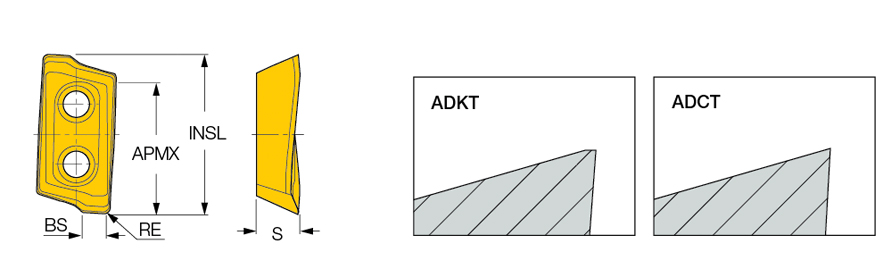

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 21.8 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 18.1 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 6.87 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | HELIPLUS milling inserts with 19 mm cutting edge for general use. | FamilyName | HP ADKT/ADCT 1906 |
| Remarks | Insert with corner radii larger than 1.0 mm should not be used on the HP ADK-19 cutter. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0235
Name
Milling Indexable Inserts
FamilyName
HP ADKT/ADCT 1906
BrandName
Iscar
