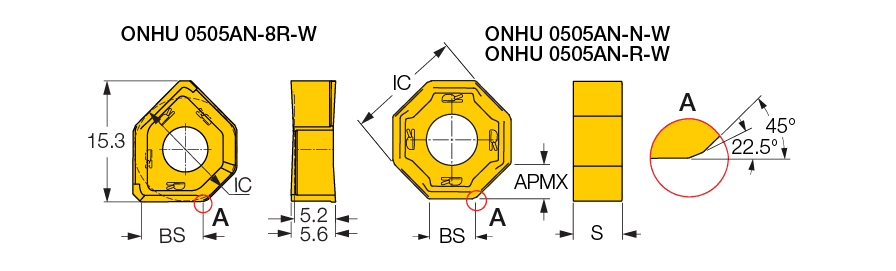

ONHU 0505AN-N-W IC810

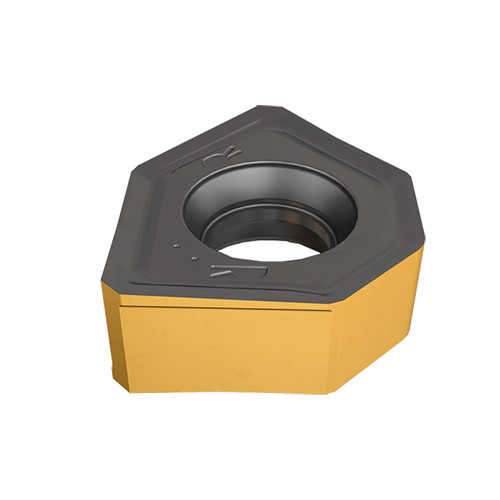

Double-sided octagonal wiper inserts with 4 or 8 cutting edges (HELIDO 845 line).
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | | Cutting Direction (HAND) | Right / Left |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 2 mm | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 4.9 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Number of Cutting Edges | 8 |
| Coating | AlTiCrN+TiN | Measurement Type | Metric |
| Grade | IC810 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth | Unit | M |
Product Features
| Family Description | Double-sided octagonal wiper inserts with 4 or 8 cutting edges (HELIDO 845 line). | FamilyName | ONHU 0505-W |
| Remarks | To be used with ONMU/ONHU 05 inserts. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0069
Name
Milling Indexable Inserts
FamilyName
ONHU 0505-W
BrandName
Iscar
