CNGG 090404-F3N-P IC20
80° rhombic, double-sided positive-radial sharp edged and very positive and polished rake inserts. Used for finishing aluminum and other non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge.
Price: Log in For Price
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | IC20 |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | CNGG | Min D.O.C. | 0.4 mm |

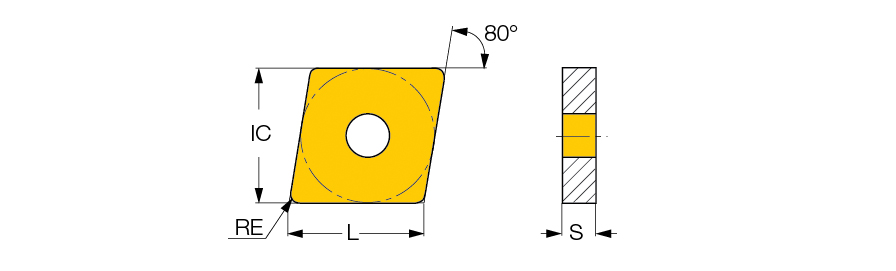

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 331-F3 | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 9.7 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
Product Features
| Family Description | 80° rhombic, double-sided positive-radial sharp edged and very positive and polished rake inserts. Used for finishing aluminum and other non-ferrous materials. Soft cut and low cutting forces eliminate built-up edge. | FamilyName | CNGG-F3N |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0036
Name
Turning Indexable Inserts
FamilyName
CNGG-F3N
BrandName
Iscar
