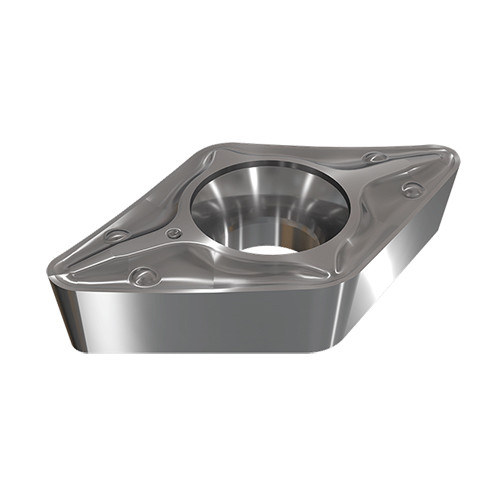

DCGT 070202-PF IC908
55° rhombic 7° positive flank inserts. Used for semi-finish and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.4 mm |

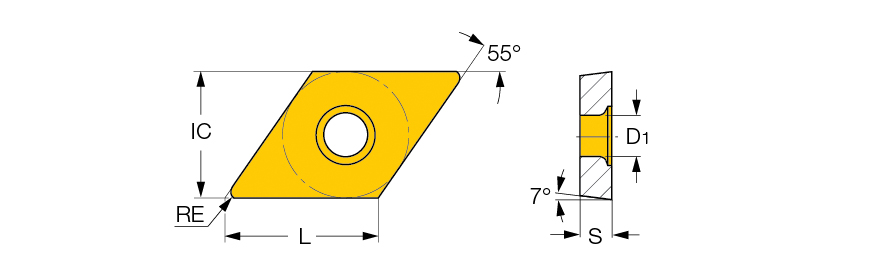

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Size | 2-0-PF | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 7.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | PF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Fixing Hole Diameter (D1) | 2.8 mm |
Product Features
| Family Description | 55° rhombic 7° positive flank inserts. Used for semi-finish and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | FamilyName | DCMT/DCGT-PF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0024
Name
Turning Indexable Inserts
FamilyName
DCMT/DCGT-PF
BrandName
Iscar
