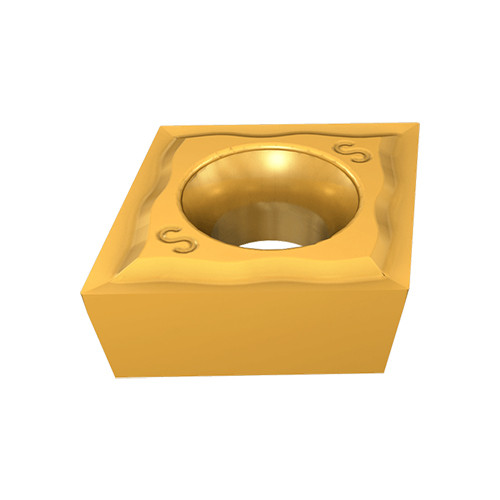

CCGT 060202-F1M-12P IC1008
80° rhombic 7° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle.
Price: Log in For Price

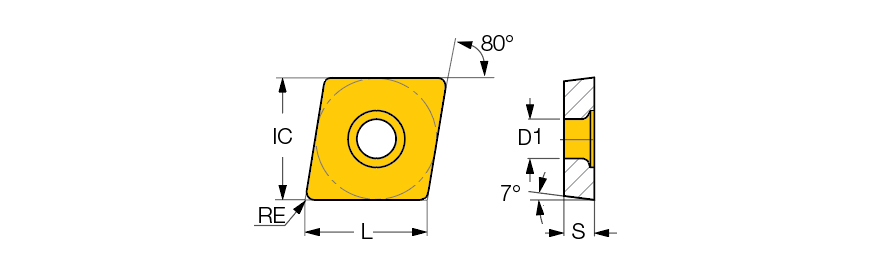

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Int. 80° Diamond 95° Approach | | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.2 mm | Min D.O.C. | 0.15 mm |
| Insert Size | 2-0-F1 | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 6.45 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.18 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | F1M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC1008 | Unit | M |
Product Features
| Family Description | 80° rhombic 7° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. | FamilyName | CCGT-F1M-12P |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0024
Name
Turning Indexable Inserts
FamilyName
CCGT-F1M-12P
BrandName
Iscar
