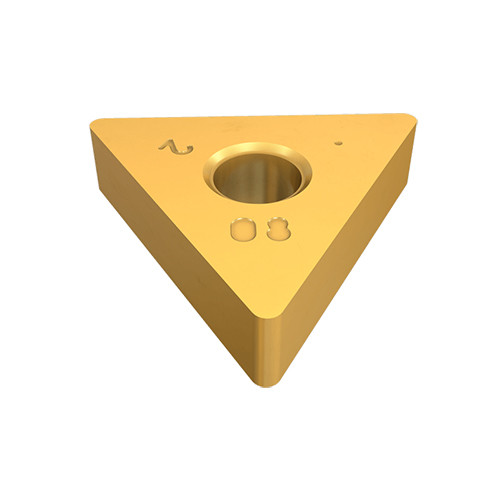

TNMA 160408 IC428
Double-sided triangular inserts with no chipformer for short chipping materials such as cast iron
Price: Log in For Price
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 1 mm |
| Insert Style | TNMA | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 160408 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiC+Al2O3 | Unit | M |
| Grade | IC428 |
Product Features
| Family Description | Double-sided triangular inserts with no chipformer for short chipping materials such as cast iron | FamilyName | TNMA |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0086
Name
Turning Indexable Inserts
FamilyName
TNMA
BrandName
Iscar
