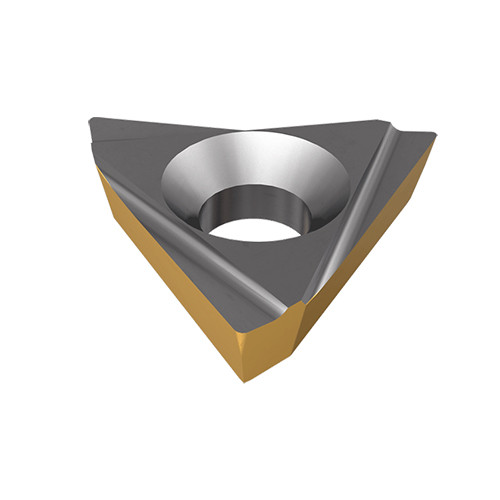

TPGH 110204-XL IC20
Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials.
Price: Log in For Price
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 1 mm |
| Insert Style | TPGH | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 110204 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Cutting Edge Length (L) | 11 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 2.38 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | XL |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC20 | Unit | M |
| Fixing Hole Diameter (D1) | 3 mm |
Product Features
| Family Description | Triangular 11° positive flank inserts with a ground chipformer. Used for finishing, provide excellent surface finish. Suitable for a wide range of materials. | FamilyName | TPGH-XL |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0023
Name
Turning Indexable Inserts
FamilyName
TPGH-XL
BrandName
Iscar
