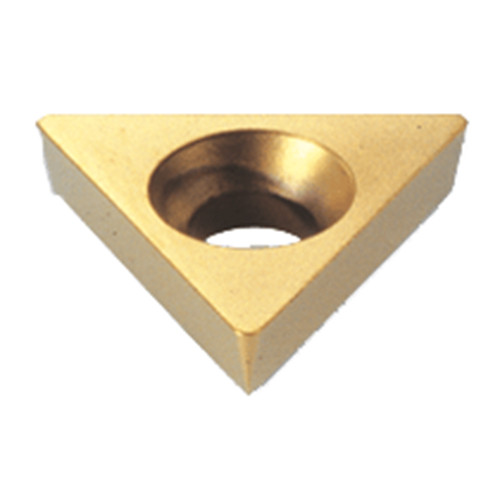

TPGB 160308-60 IC570
Triangular 11° positive flank inserts. Single-sided, without chipformer. Suitable for short chipping materials such as cast iron.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 1 mm |

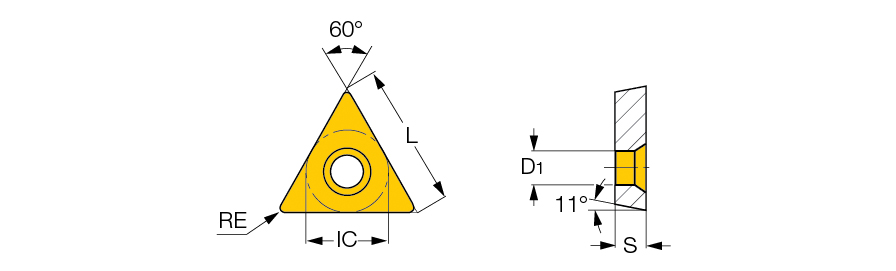

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Insert Size | 322-60 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 16.5 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | W |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC570 | Unit | M |
| Fixing Hole Diameter (D1) | 4.3 mm |
Product Features
| Family Description | Triangular 11° positive flank inserts. Single-sided, without chipformer. Suitable for short chipping materials such as cast iron. | FamilyName | TPGB |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0034
Name
Turning Indexable Inserts
FamilyName
TPGB
BrandName
Iscar
