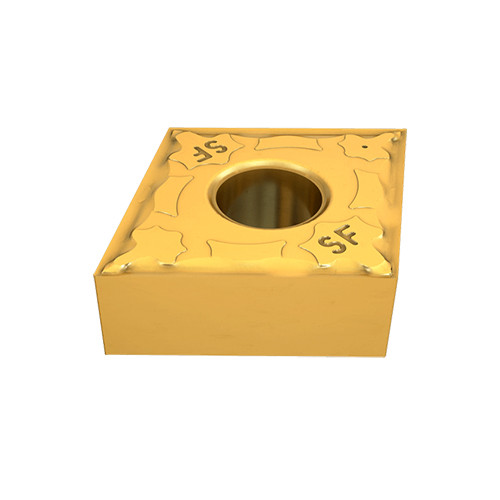

CNGG 120401-SF IC907
Double-sided 80° rhombic inserts for super-finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 0.2 mm |
| Insert Style | CNGG | Depth of Cut Maximum (APMX) | 1.5 mm |
| Corner Radius (RE) | 0.1 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Size | 120401 | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | SF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC907 | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | Double-sided 80° rhombic inserts for super-finishing; controls chip flow at very low feeds and depths of cut. Excellent crater wear resistance. | FamilyName | CNMG/CNGG-SF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0111
Name
Turning Indexable Inserts
FamilyName
CNMG/CNGG-SF
BrandName
Iscar
