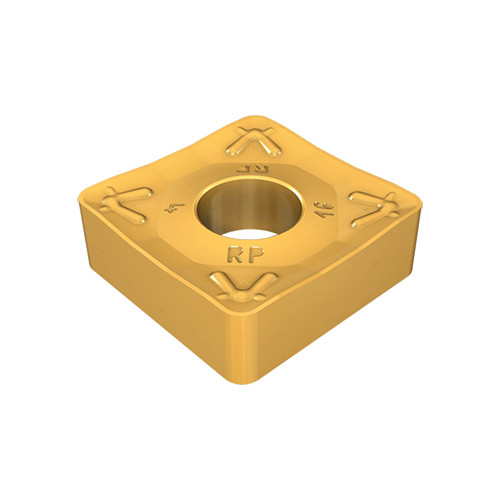

SNMM 120416-RP IC9350
Single-sided square inserts with a strong, positive land and rake, combined with positive radial edge inclination. Used for roughing of soft and ductile materials.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Min D.O.C. | 2.5 mm |

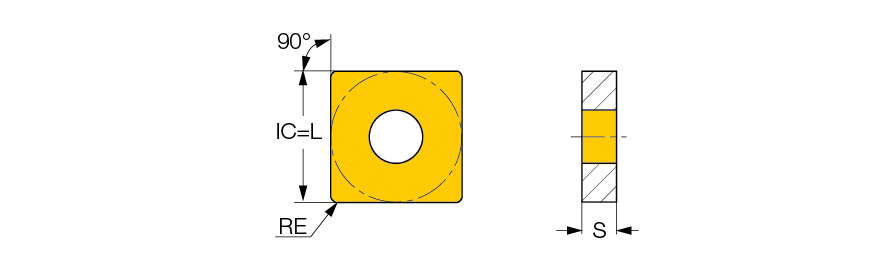

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 6 mm |
| Insert Size | 434-RP | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.7 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | RP |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+alpha Al2O3+TiN | Body Material | Carbide |
| Grade | IC9350 | Unit | M |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | Single-sided square inserts with a strong, positive land and rake, combined with positive radial edge inclination. Used for roughing of soft and ductile materials. | FamilyName | SNMM-RP |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0092
Name
Turning Indexable Inserts
FamilyName
SNMM-RP
BrandName
Iscar
