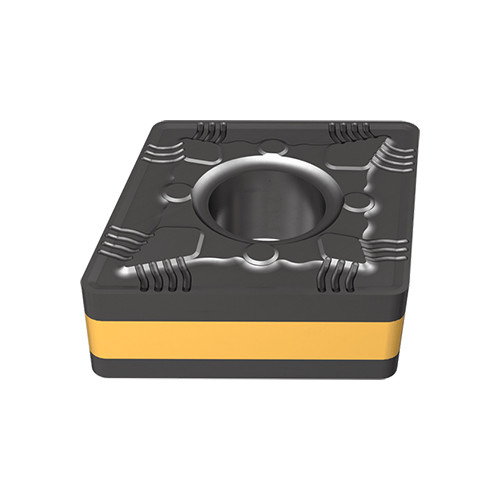

CNMG 190608-NR IC8350
Double-sided 80° rhombic inserts with a special chipformer for heavy machining.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 100° Diamond 75° Approach | Ext. 100° Diamond 75°Face Appr | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Min D.O.C. | 3.5 mm |

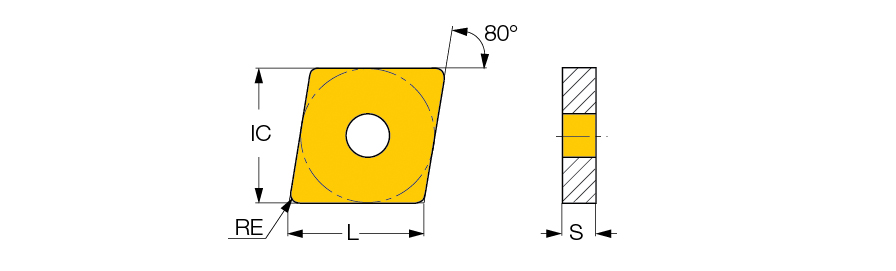

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 8 mm |
| Insert Size | 642-NR | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 19.3 mm | Max. Turning Feed (ft(max)) | 0.72 mm/rev |
| Insert Thickness (S) | 6.35 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | NR |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8350 | Unit | M |
| Fixing Hole Diameter (D1) | 7.94 mm |
Product Features
| Family Description | Double-sided 80° rhombic inserts with a special chipformer for heavy machining. | FamilyName | CNMG-NR |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0294
Name
Turning Indexable Inserts
FamilyName
CNMG-NR
BrandName
Iscar
