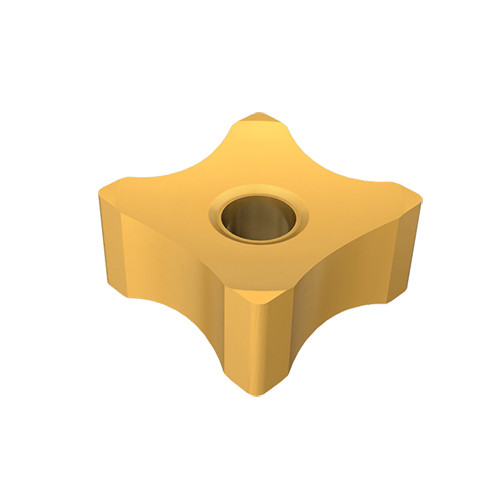

SNMX 150708R-15 IC8150
Pipe skiving inserts with a positive rake used to remove burr on welded tubes.
Price: Log in For Price

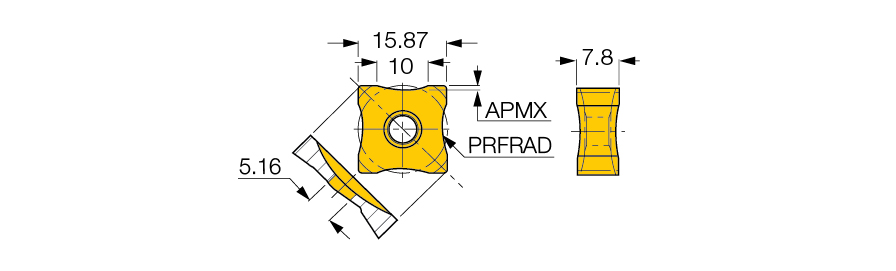

| Applicable Material | | Steel | Cast Iron | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext. Pipe Skiving | | Tool Type | Turn Positive Inserts |
| Insert Style | SNMX | Min D.O.C. | 0 mm |
| Corner Radius (RE) | 15 mm | Depth of Cut Maximum (APMX) | 0.86 mm |
| Insert Size | 150708 | Min. Turning Feed (ft(min)) | 0 mm/rev |
| Cutting Edge Length (L) | 15.87 mm | Max. Turning Feed (ft(max)) | 0 mm/rev |
| Insert Thickness (S) | 7.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 15.87 mm | Chip Breaker Type | M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiCN+TiN | Body Material | Carbide |
| Grade | IC8150 | Unit | M |
Product Features
| Family Description | Pipe skiving inserts with a positive rake used to remove burr on welded tubes. | FamilyName | SNMX 150708R-.. |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0196
Name
Turning Indexable Inserts
FamilyName
SNMX 150708R-..
BrandName
Iscar
