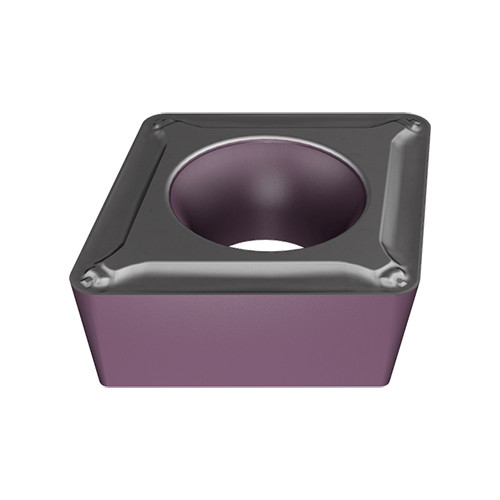

CCMT 060204-F3M IC6025
80° rhombic positive flank inserts for stainless steel finishing applications.
Price: Log in For Price

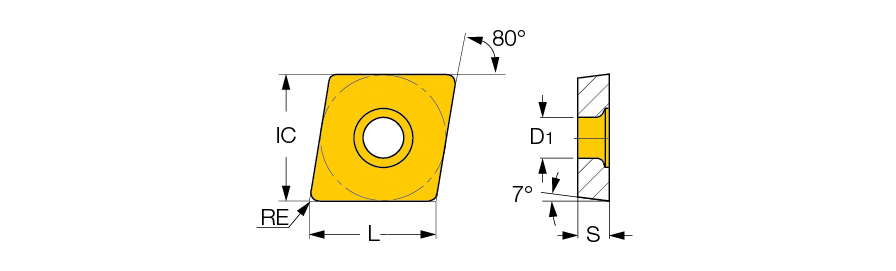

| Applicable Material | | Stainless Steel | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Int. 80° Diamond 90° Approach | Int. 80° Diamond 95° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | | Tool Type | Turn Positive Inserts |
| Insert Style | CCMT | Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.7 mm |
| Insert Size | 2-1-F3 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 6.45 mm | Max. Turning Feed (ft(max)) | 0.18 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | F3M |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC6025 | Unit | M |
Product Features
| Family Description | 80° rhombic positive flank inserts for stainless steel finishing applications. | FamilyName | CCMT-F3M |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0024
Name
Turning Indexable Inserts
FamilyName
CCMT-F3M
BrandName
Iscar
