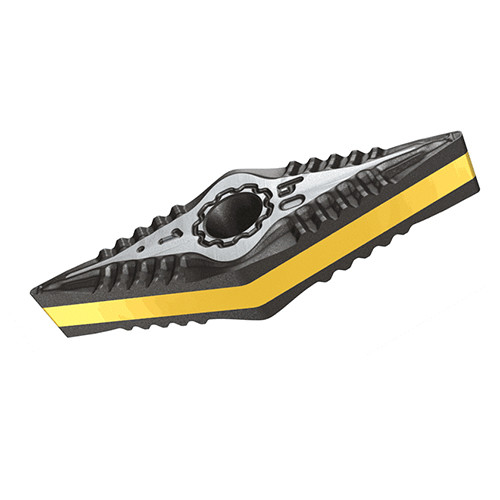

VNMG 160404-F3P IC807
Double-sided 35° rhombic inserts for semi-finishing and finishing applications on steel.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | | Min D.O.C. | 0.7 mm |

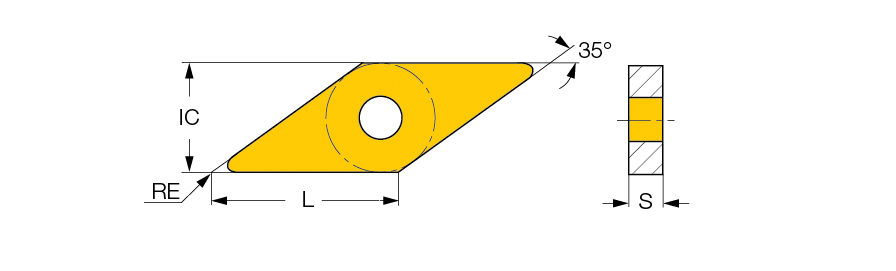

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 331-F3 | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.24 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 | Unit | M |
Product Features
| Family Description | Double-sided 35° rhombic inserts for semi-finishing and finishing applications on steel. | FamilyName | VNMG-F3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0127
Name
Turning Indexable Inserts
FamilyName
VNMG-F3P
BrandName
Iscar
